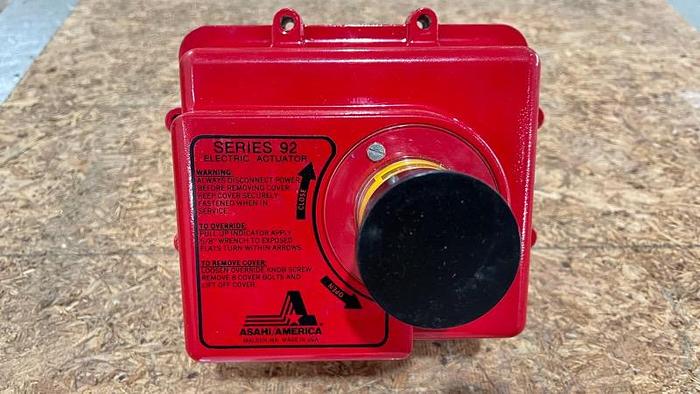

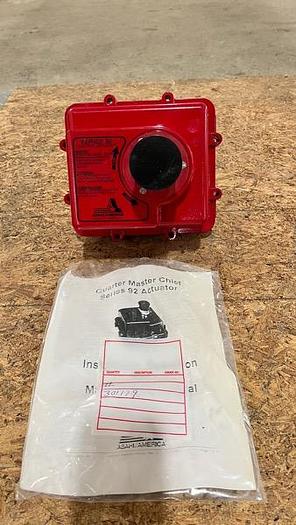

Quarter Master Chief/ Series 92 Actuator-Item#640

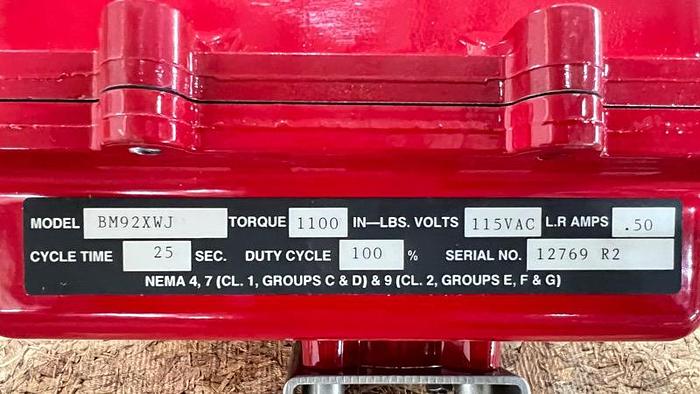

Model# BM92XWJ

The Series 92 electric actuator is a primary electric actuator for most butterfly valves, and larger ball valves, as well as multi-turn diaphragm and gate valves. Ideal applications for this actuator include remote locations, locations with no air supply, colder temperatures, and larger valves. The actuator has an integrated thermal overload protection for motor windings with automatic reset. The CE compliant motor has extended duty cycles that are ideal for modulating and high cycling applications.

• Weatherproof NEMA type 4X enclosure
• Permanently lubricated, solid Rockwell hardened gear
• Approximate cycle time per 90°: 15 seconds (1-1/2"-4") & 32 seconds (6" & 8")
• Declutchable manual override
• Switches: two single-pole, double-throw (SPDT), 15 Amp rated
• Torque: 1100 in. lbs.
• Conduit entry: two 1/2" NPT
• Voltage: 120 VAC, 1Ph, 50/60 Hz
• Maximum ambient temperature: 150°F
• UL-508 listed
