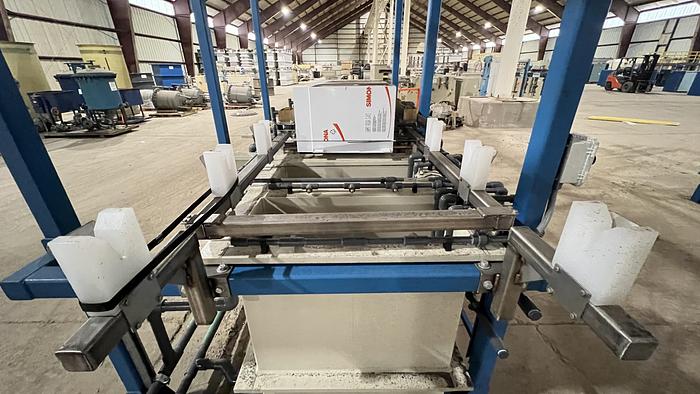

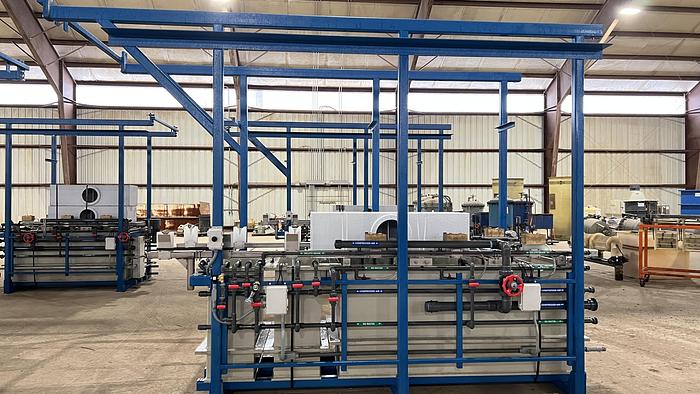

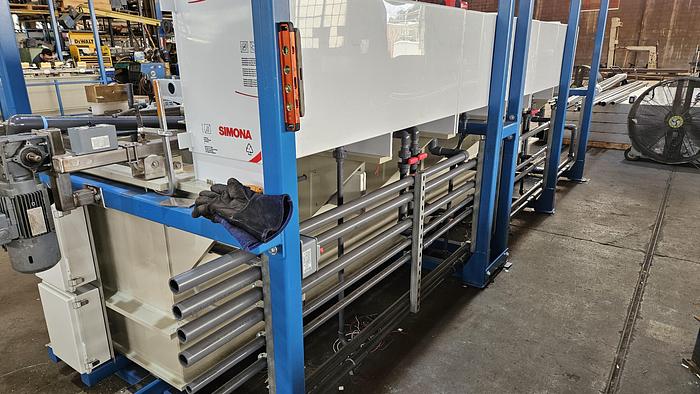

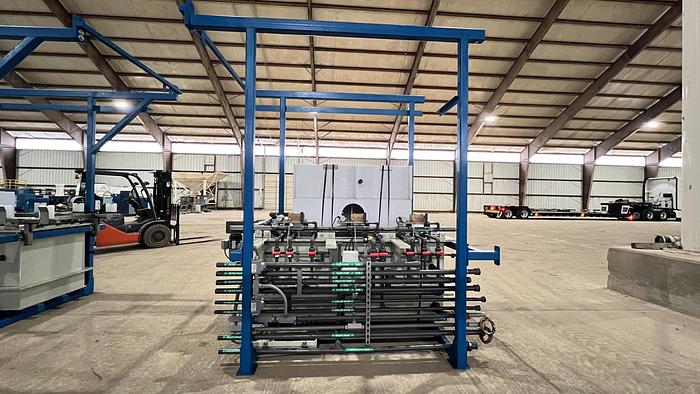

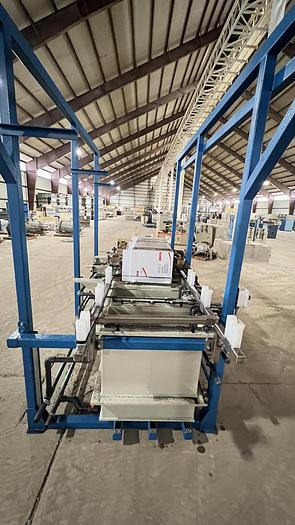

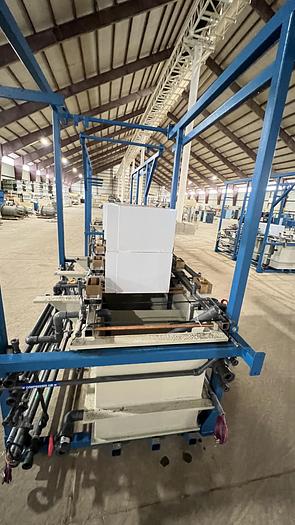

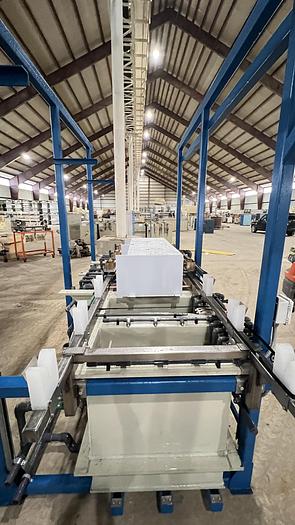

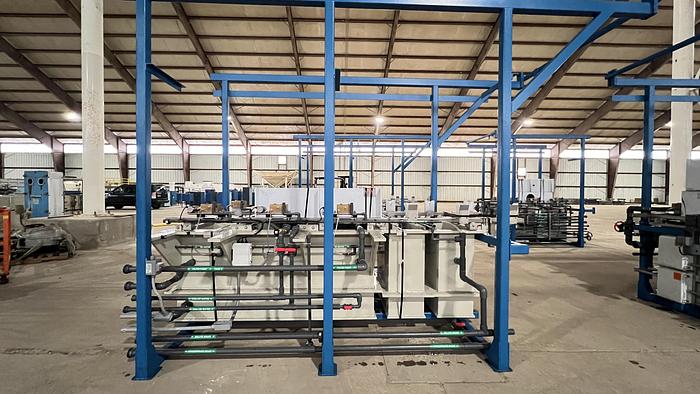

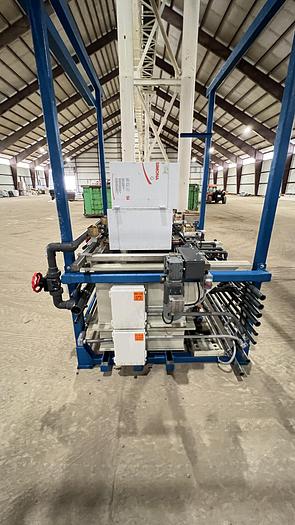

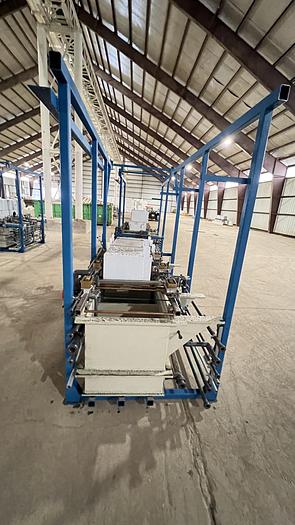

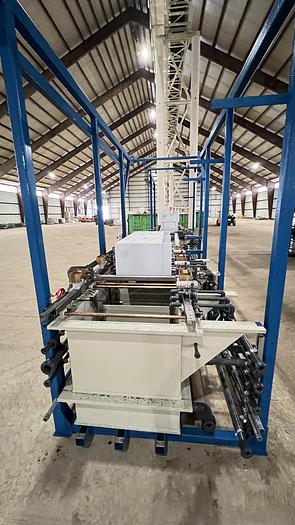

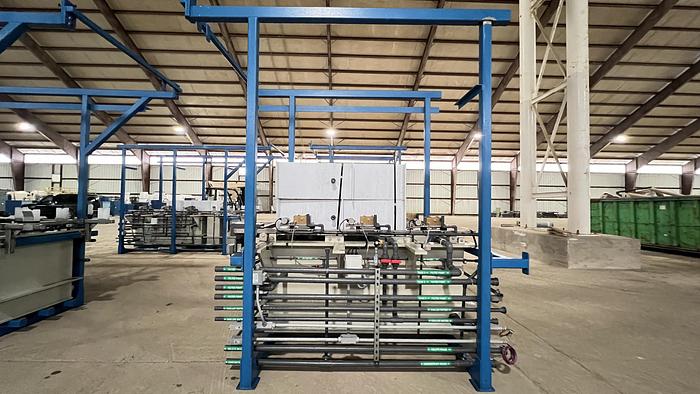

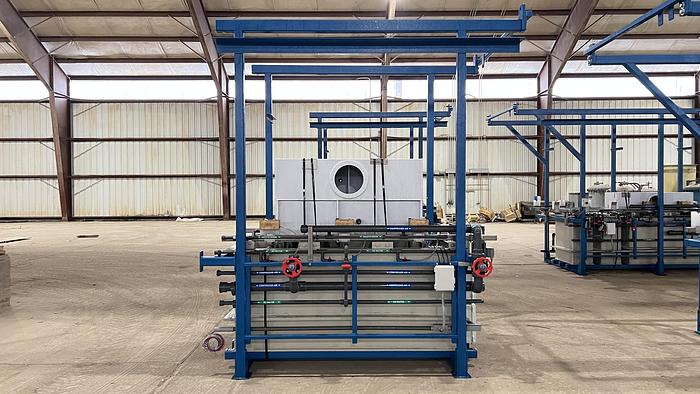

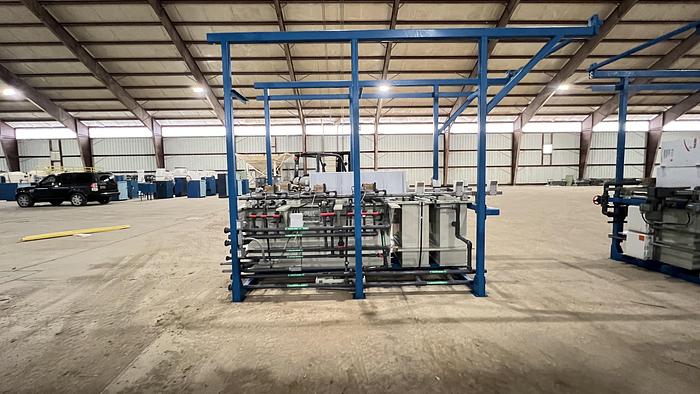

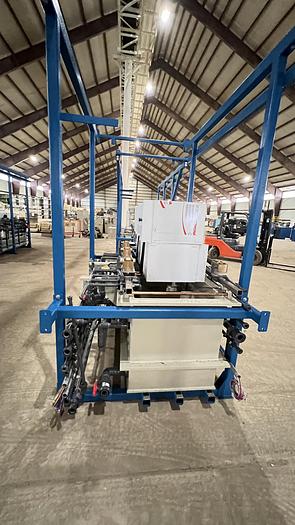

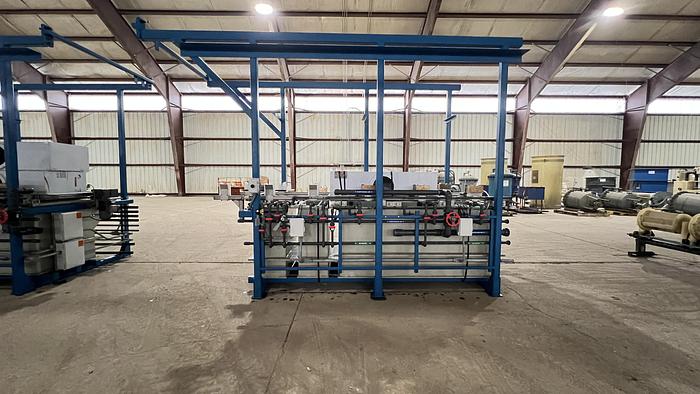

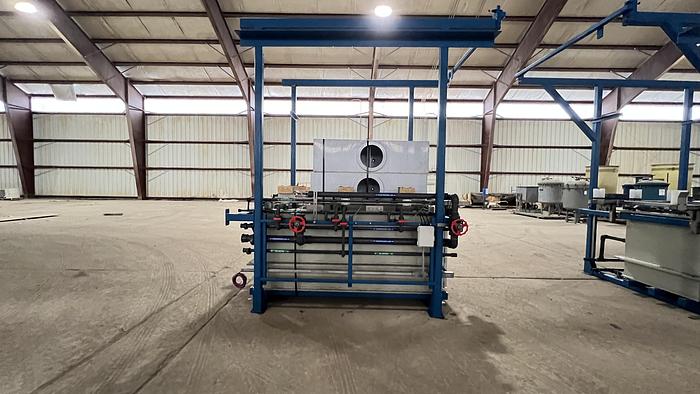

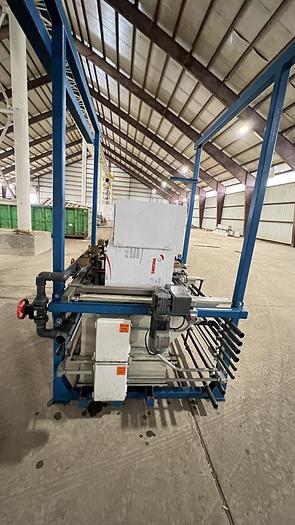

Two BRAND NEW- Acid Copper Plating Lines

Two Brand New, Unused, Plating Lines!

These lines were built for a major aerospace OEM to acid copper plate on pre-cleaned substrate. Exceptional tanks and components were specified and used for this line build.

The lines could be used for other plating or anodizing applications or combined to form a parallel leg line or one longer process line.

Each line consists of 4 tanks - 2 Rinses (single station) and 2 plating tanks (3 station) for a total number of 8 work stations. Putting the lines together to form 1 process line would yield 16 work stations.

Individual process line sequence is:

• Sta. Process 1. Fixed Load/Unload Stand
• 2. Post-copper, single rinse w/ exit water sprays
• 3. Acid dip/Dragout
• 4.-6. Acid copper tank (three stations)
• 7.-9. Acid copper tank (three stations)

The basic tank sizes are:

• Ambient rinse tank 14.0” DOT by 32” CDOT by 36“ Deep
• Acid dip tank 14.0” DOT by 32” CDOT by 36“ Deep
• Copper plating tank #1 79” DOT by 32” CDOT by 36“ Deep
• Copper plating tank #2 79” DOT by 32” CDOT by 36“ Deep

Plating line 1:

Length- 23'-6"

Width- 6'-5"

High- 10'-6"

Weight- 8,000 pounds

Plating line 2:

Length- 23'-6"

Width- 6'-5"

High- 10'-6"

Weight- 8,000 pounds
